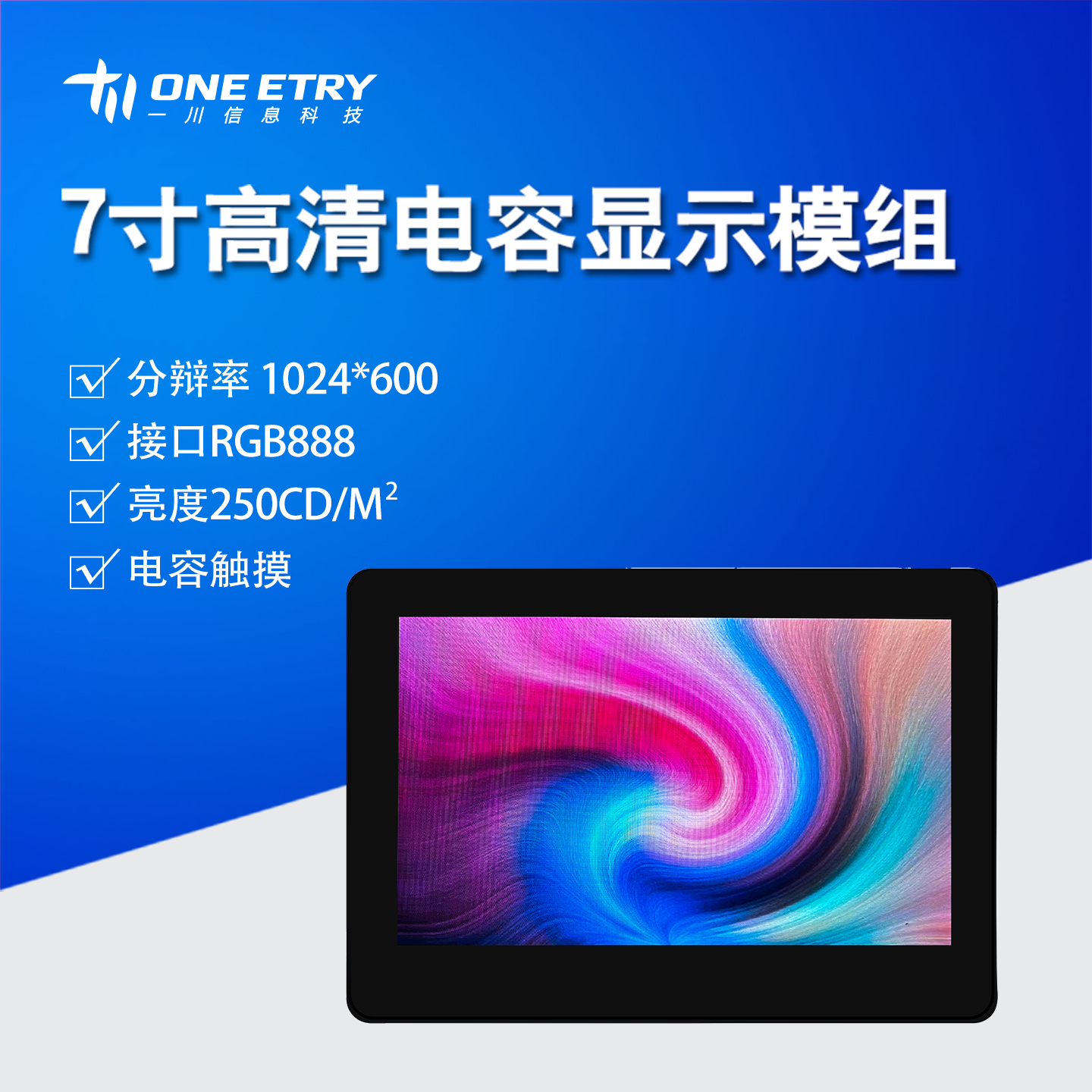

7寸高清电容显示模组

接口方式：RGB888

触摸接口：IIC

亮度：250cd/M2

视角：IPS

显示尺寸：154.21(W) × 85.92(H)mm

模块尺寸：165(W) ×100.0(H) ×5.7(D)mm

中框尺寸：180.8(W) ×119.4(H) ×15(D)mm，R7角

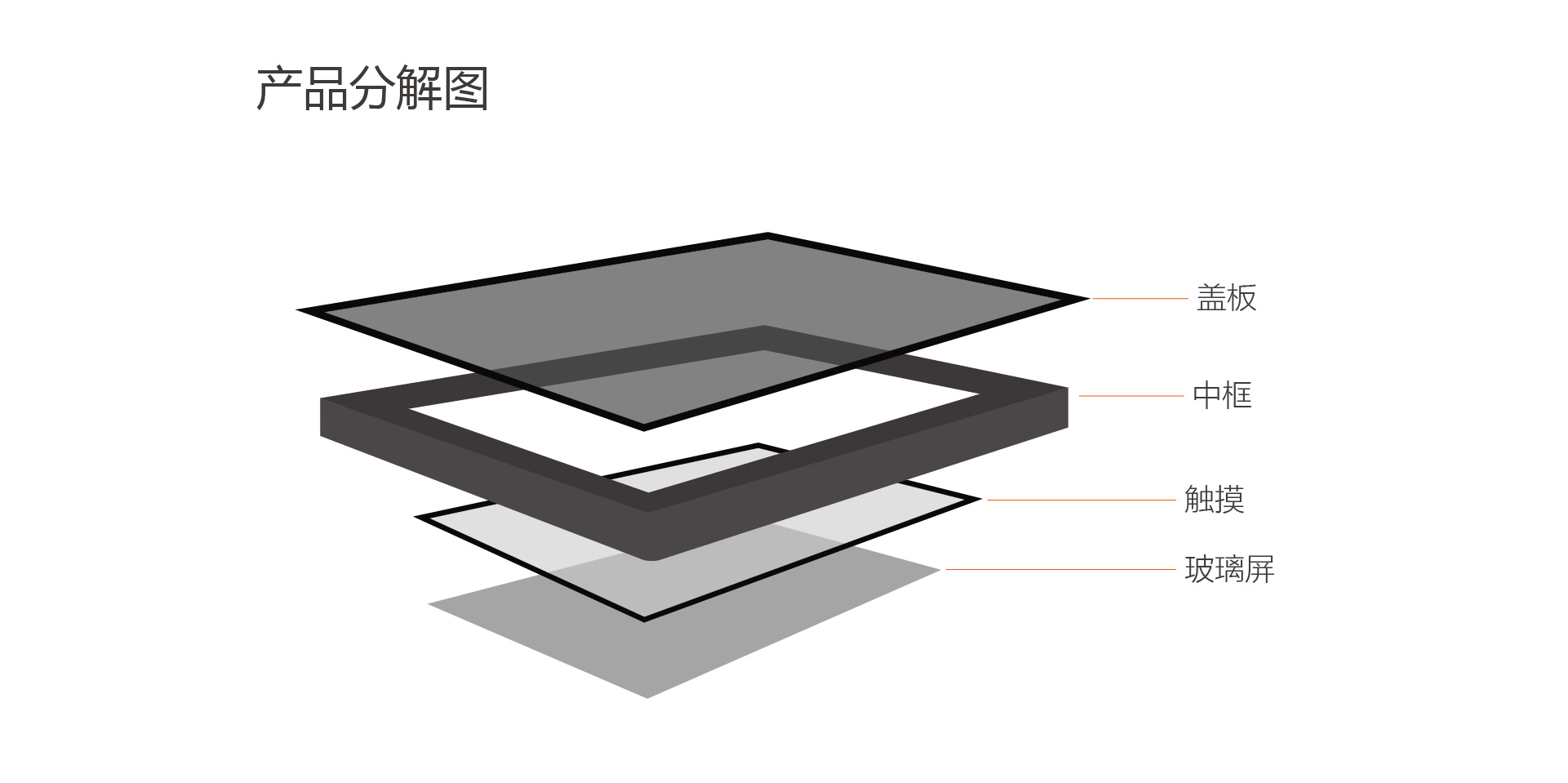

裸屏结构图

触摸板结构图

中框尺寸

Pin No	Symbol	Function	Remark
1	A	Power for LED backlight (Anode)
2	A	Power for LED backlight (Anode)
3	K	Power for LED backlight (Cathode)
4	K	Power for LED backlight (Cathode)
5	GND	Power ground
6	V COM	Common voltage
7	DV DD	Digital Power
8	MODE	DE/SYNC mode select. Normally pull high	Note 1
9	DE	Data Input Enable
10	VS	Vertical sync input. Negative polarity
11	HS	Horizontal sync input. Negative polarity
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data	Note 2
19	B0	Blue data(LSB)	Note 2
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data	Note 2
27	G0	Green data(LSB)	Note 2
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Clock input
38	GND	Power Ground
39	L/R	Left or Right Display Control	Note 2
40	UPDN	Up / Down Display Control	Note 3
41	VGH	Positive Power for TFT
42	VGL	Negative Power for TFT
43	AVDD	Analog Power
44	RESET	Global reset pin.	Note 4
45	NC	No connection
46	VCOM	Common Voltage
47	DITH	Dithering setting	Note 5
48	GND	Power Ground
49	NC	No connection
50	NC	No connection
