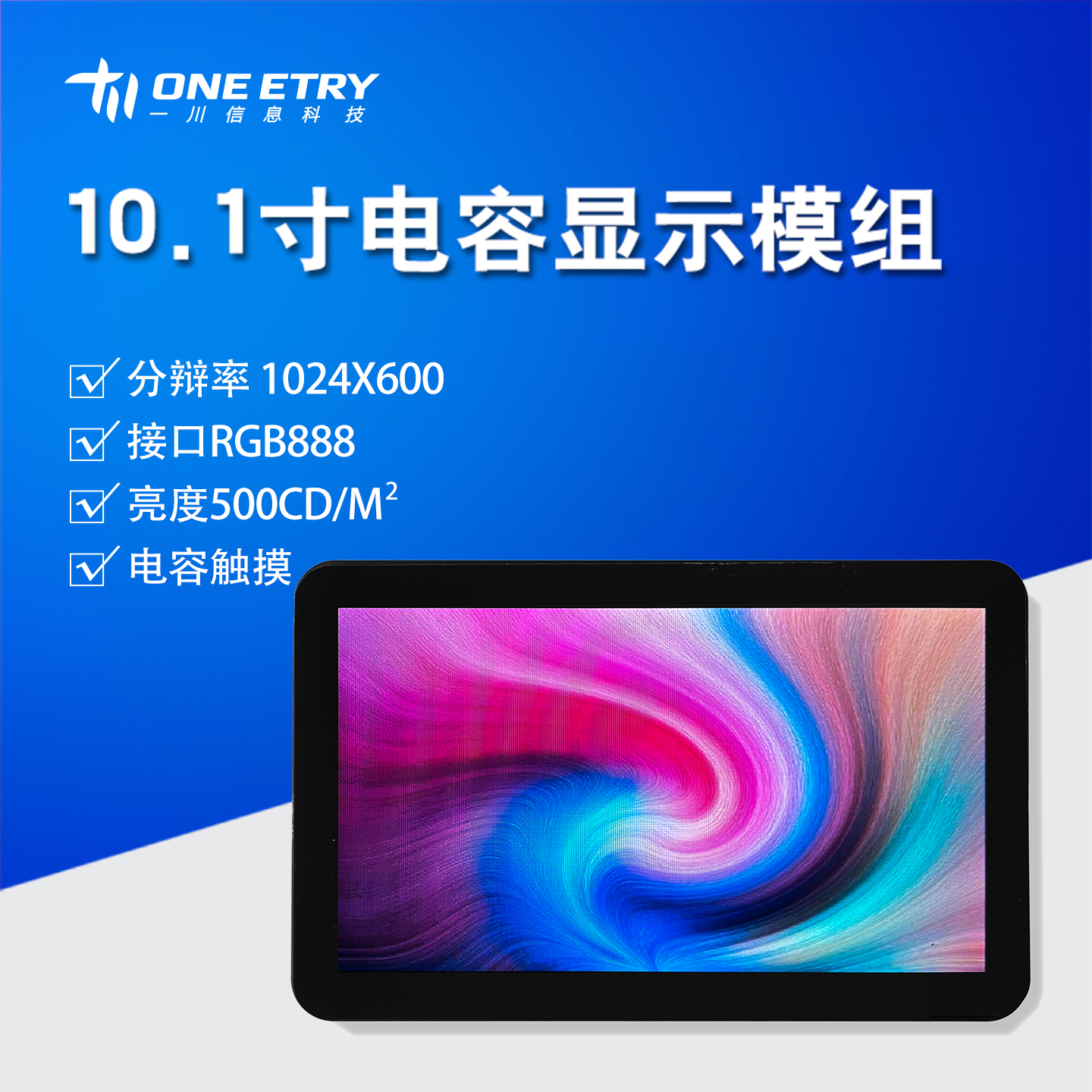

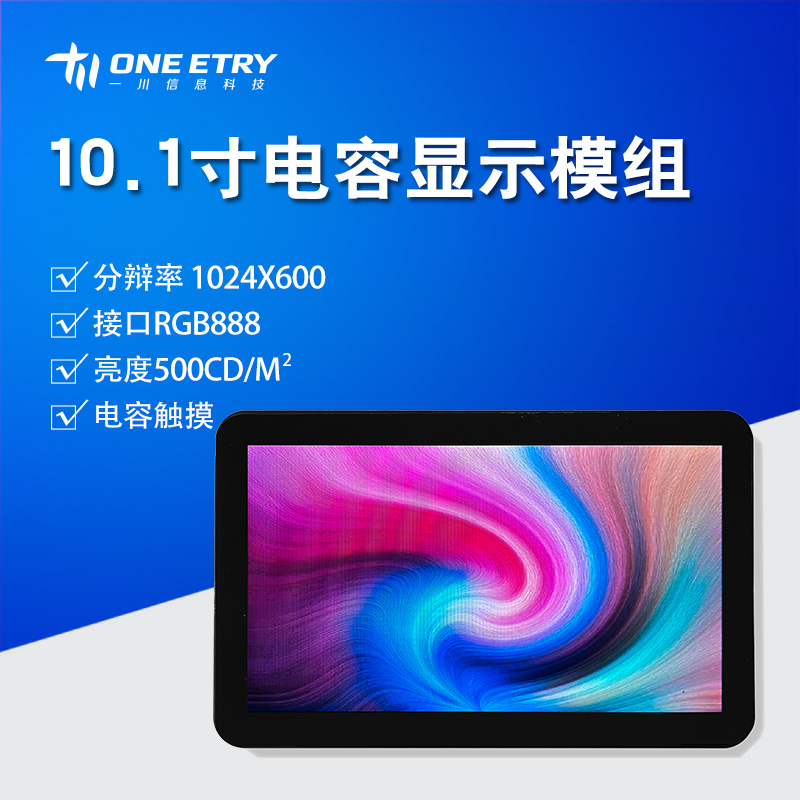

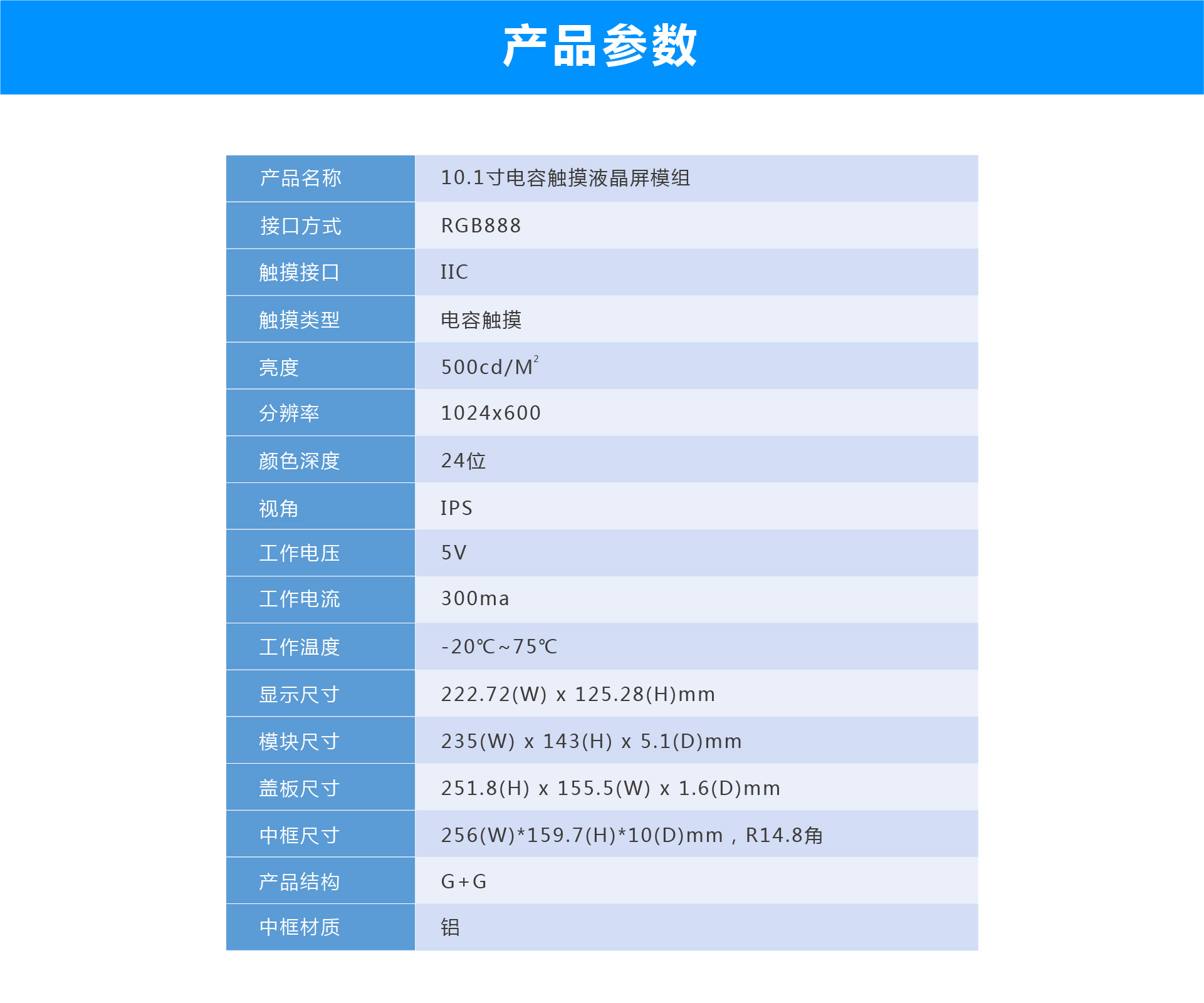

接口方式：RGB888
亮度：500cd/M2
视角：IPS
显示尺寸：222.72(W) x 125.28(H)mm
模块尺寸：235(W) x 143(H) x 5.1(D)mm

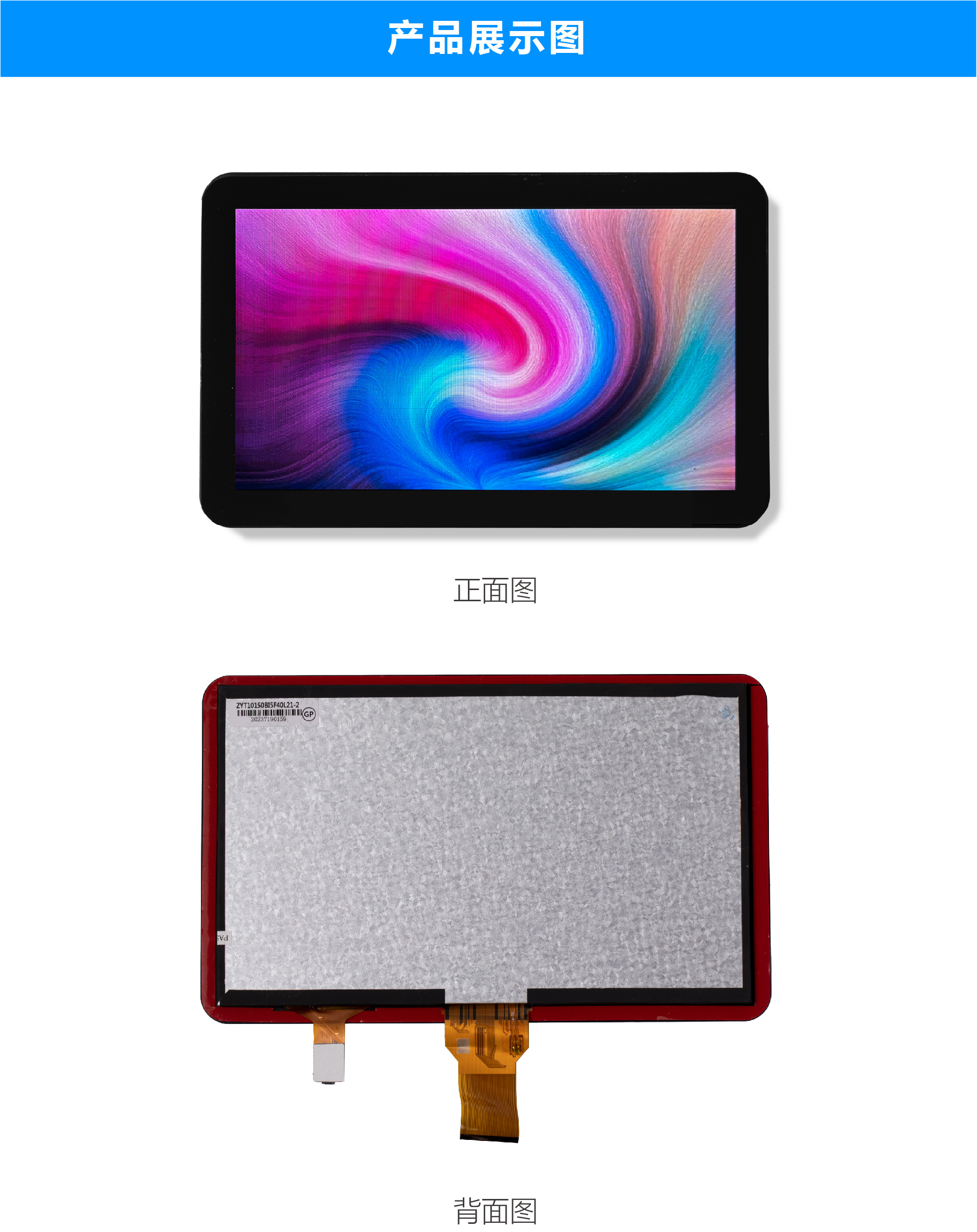

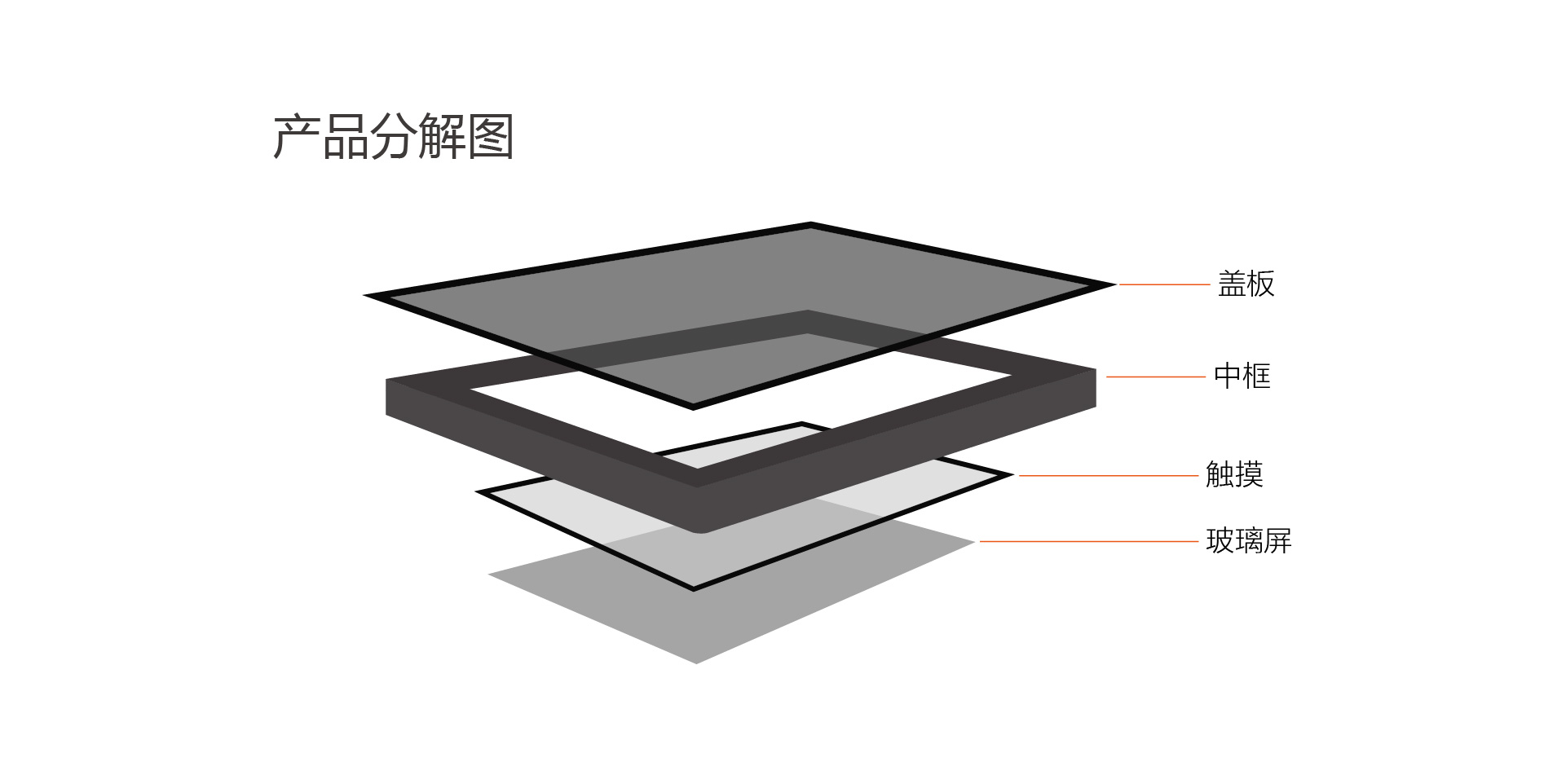

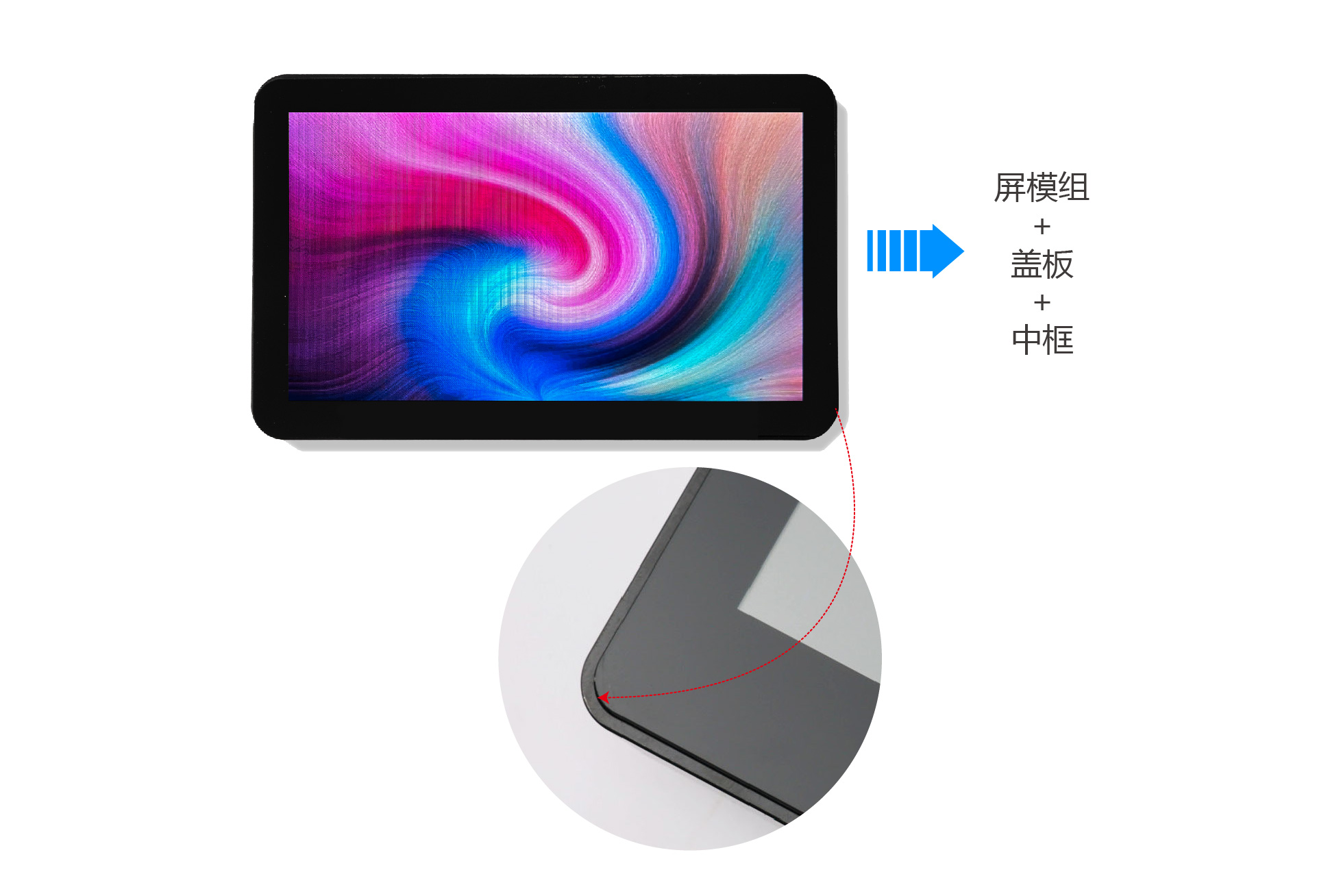

产品结构：G+G
中框材质：铝

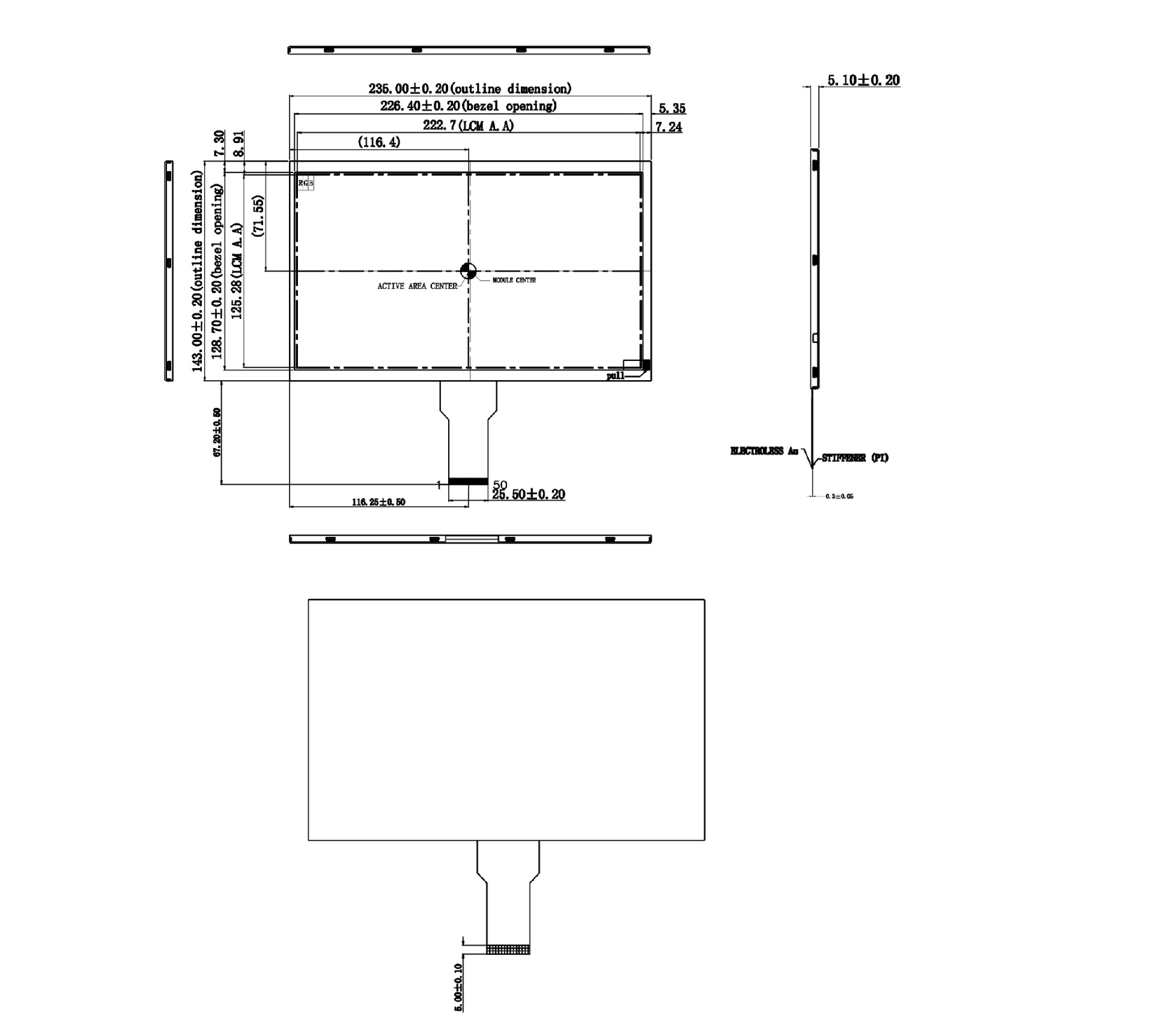

裸屏结构图
屏排线线长67.2mm

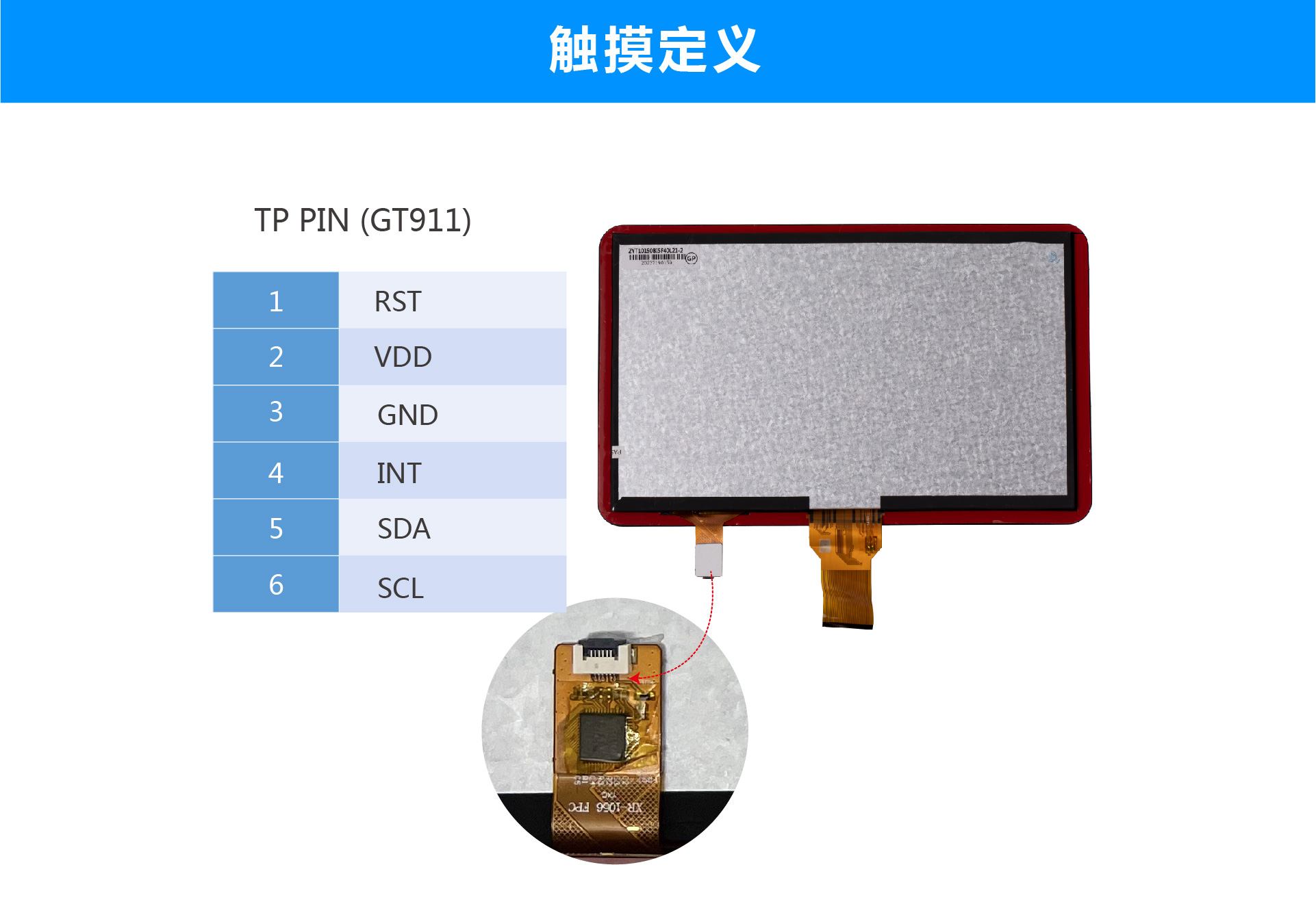

触摸的排线我司提供150mm的FPC延长线

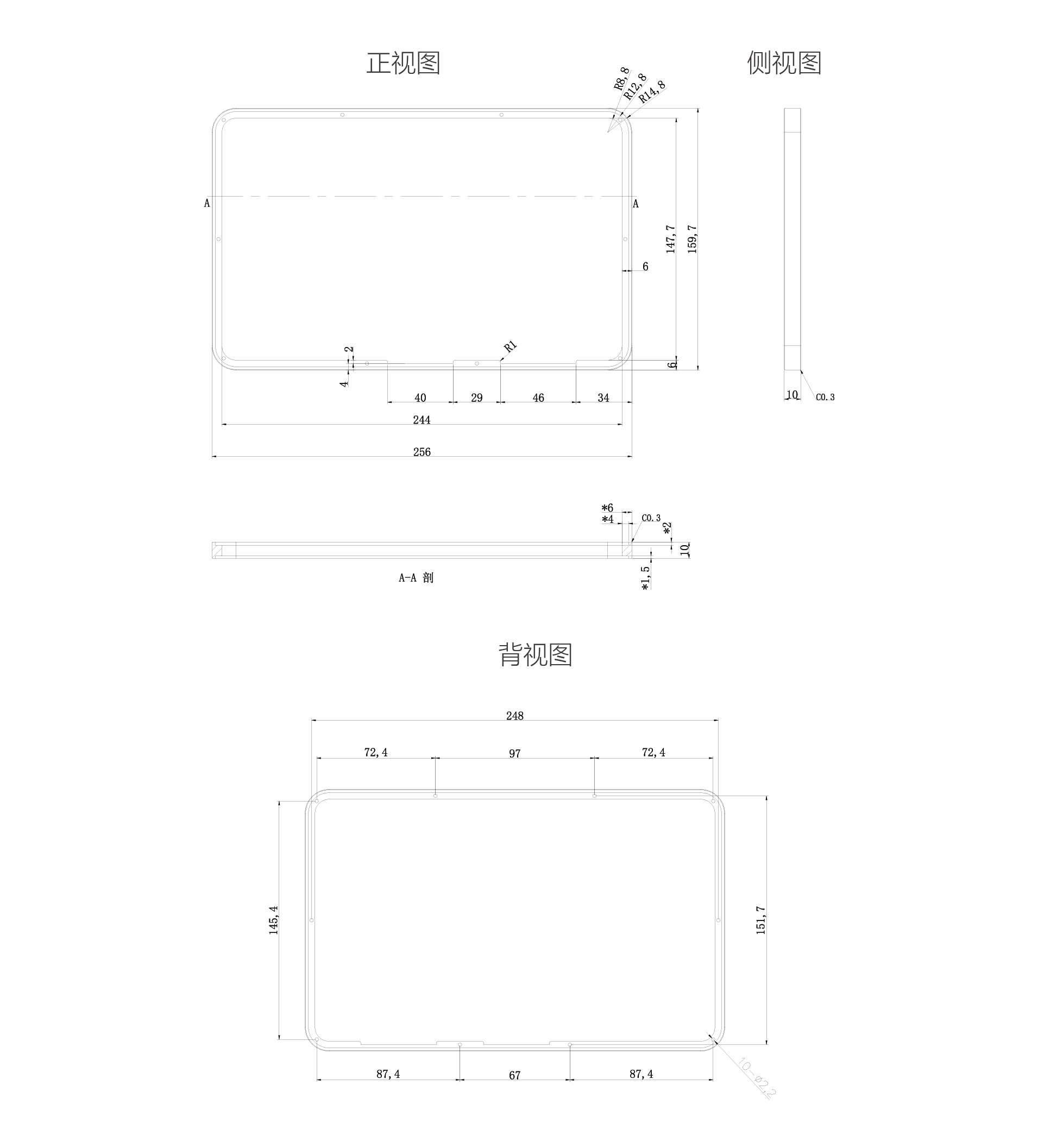

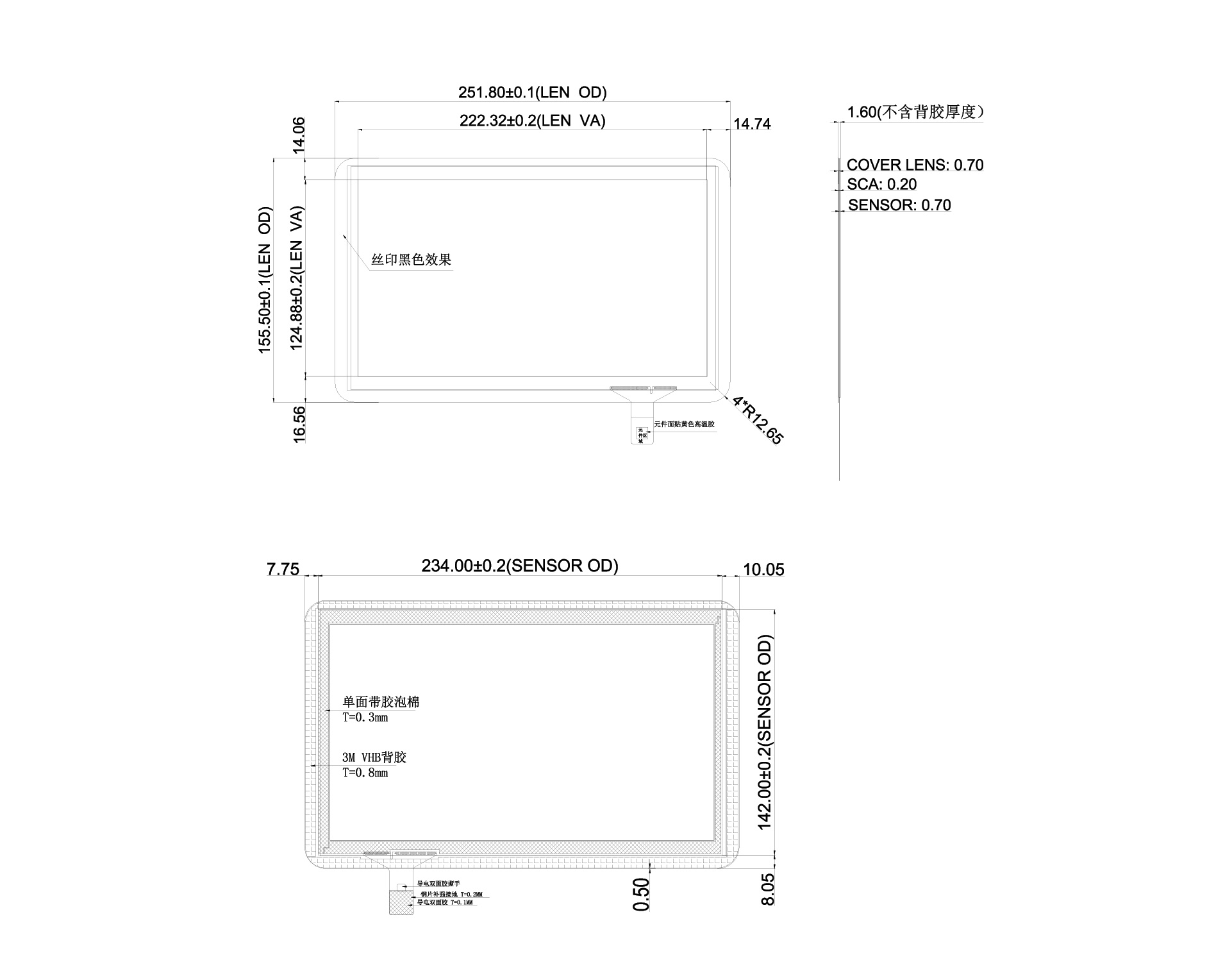

面盖尺寸
中框尺寸
|
Pin No |
Symbol |
Function |
|
1-2 |
LED_A |
Backlight LED Power |
|
3-4 |
LED_K |
Backlight LED Ground |
|
5 |
GND |
Ground |
|
6 |
VCOM |
Common voltage |
|
7 |
DVDD |
Power for Digital Circuit |
|
8 |
MODE |
DE/SYNC mode select |
| 9 |
DE |
Data Enable Input |
|
10 |
VSYNC |
Vertical Sync Input |
|
11 |
HSYNC |
Horizontal Sync Inout |
|
12-19 |
B7-B0 |
Blue Date Bit |
|
20-27 |
G7-G0 |
Green Data Bit |
|
28-35 |
R7-R0 |
Red Data Bit/DX0-DX7 |
|
36 |
GND |
Ground |
|
37 |
DCLK |
Dot Data Clock |
|
38 |
GND |
Ground |
|
39 |
L/R |
Left/Right selection |
|
40 |
U/D |
Up/Down selection |
|
41 |
VGH |
Gate ON Voltage |
|
42 |
VGL |
Gate OFF Voltage |
|
43 |
AVDD |
Power for Analog Circuit |
|
44 |
RESET |
Globa resel pin,Active low to enter resel state.suggest to connecting with an RC reset circuit for stability.Normally pull high. |
|
45 |
NC |
NC |
|
46 |
VCOM |
Common voltage |
|
47 |
DITHB |
Dithering function |
|
48 |
GND |
Ground |
|
49-50 |
NC |
NC |
